Weather-Ometer Ci5000

  • Descripción General +



    El Ci5000, con su avanzado sistema de control digital, representa un logro monumental en la aplicación de tecnologías digitales y ópticas en instrumentos de intemperismo de laboratorio fáciles de usar. El Ci5000 está aprobado por muchos OEM en las industrias de automóviles, pinturas, revestimientos y plásticos como la plataforma exclusiva para entregar resultados precisos, reproducibles y repetibles para predecir la vida útil de servicio. El Ci5000 ha sido certificado por CE, UL, CSA, ISO y EN.

  • Características +


    • Sistema de lámpara de arco de xenón enfriado por agua de 12000 W
    • Área total de exposición: 11.000 cm2 (1.705 in2)
    • Estante de muestras con inclinación de 3 niveles
    • Visualización de todos los parámetros de prueba en el panel de control pantalla táctil TFT de color y de 12”
    • Ajuste directo y control de irradiación: 340 nm, 420 nm, 300-400 nm o Lux
    • Ajuste directo y control de la temperatura del panel negro; sin aislamiento (BPT) o aislado (BST)
    • Ajuste directo y control de humedad relativa
    • Ajuste directo y control de la temperatura del aire de la cámara de muestras
    • Visualización de los mensajes diagnósticos
    • 14 métodos de prueba preprogramados de fábrica
    • Espacio para 12 programas personalizados; capacidad de ciclo secundario
    • Capacidad de múltiples idiomas (inglés, francés, alemán, español, japonés, chino, coreano, turco)
    • Descarga de datos de transmisión por Ethernet o puerto USB. Unidad de memoria USB incluida
    • SmartDamperTM para reducir la variabilidad de la prueba en la temperatura y humedad de la cámara y compensa los cambios en condiciones ambientales del laboratorio
    • SmartLight MonitorTM verifica que la cápsula de luz correcta esté instalada
    • Spray de muestras y de estante
    • Filter combinations disponibles para cumplir con todos los métodos de prueba comunes
    • Filtro de polvo para la entrada de aire
    • Sistema de enfriamiento de la lámpara de xenón CS-7
    • Indicador de pureza del agua con alarma
    • Lámpara de referencia de xenón calibrada
    • Ventana de visualización de la cámara en la puerta
    • Configuraciones eléctricas universales para cumplir con los requisitos de frecuencia, voltaje y electricidad locales
    • Cumple con los requisitos de seguridad CE, UL, ISO EN y CSA
    • Cuenta regresiva de prueba automática basada en la exposición por tiempo o radiante
    • Specimen Holders disponibles para acomodar muchos tipos de muestras
    • Sistema de humidificación VibraSonicTM

    Contáctenos hoy para ver cómo podemos ayudarle a aprovechar al máximo sus pruebas y procesos de intemperismo.

  • Opciones +


    • Medición/control doble de temperatura de panel negro (BPT) y de temperatura estándar negra (BST), incluyendo sensores BPT y BST sin aislamiento
    • Monitoreo de la segunda longitud de onda 300-400 nm, 340 nm, 420 nm o Lux
    • Sistema de temperatura de superficie de muestras específicas S3T
    • Sistema de adquisición de datos WXView II: aplicación basada en web que permite a los usuarios acceder de forma segura a los instrumentos conectados a la red de su empresa, descargar archivos archivados y otras funciones
    • Capacidades de alta irradiación disponibles con diseños de estante de muestras personalizados (Ci5000 HE)

  • Accesorios +


    • Dispositivo de calibración de irradiación XenoCal para la calibración y medición de irradiación independiente en el plano de la muestra
    • Linterna de filtro auxiliar para cumplir con los requisitos de pruebas especiales en interiores de automóviles y textiles
    • Sistema de enfriamiento de lámpara de xenón autónomo LiquiAirTM (disponible montado superior o en la pared)
    • Extensiones de pata (6 patas: la unidad se eleva 15 cm)
    • Cerradura con pestillo para la puerta de la cámara

  • Standards +


    Las normas y especificaciones listadas pueden incluir opciones de análisis alternativas. El instrumento cumple al menos una opción en cualquier norma de la lista. Las normas están sometidas a cambios sin notificación, lo que puede resultar en un cambio en la tecnología de análisis. Compruebe siempre el estado de revisión de las normas con la organización responsable de desarrollo de normas. Si tiene alguna duda sobre el cumplimiento de los instrumentos, póngase en contacto con su comercial local.

    • AATCC TM16.3
      • Colorfastness to Light: Xenon-Arc
    • AATCC TM169
      • Weather Resistance of Textiles: Xenon Lamp Exposure
    • AATCC TM16E
      • Colorfastness to Light
    • ASTM C1257
      • Standard Test Method for Accelerated Weathering of Solvent-Release-Type Sealants
    • ASTM C1442
      • Standard Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus
    • ASTM C1501
      • Standard Test Method for Color Stability of Building Construction Sealants as Determined by Laboratory Accelerated Weathering Procedures
    • ASTM C1519
      • Standard Test Method for Evaluating Durability of Building Construction Sealants by Laboratory Accelerated Weathering Procedures
    • ASTM C732
      • Standard Test Method for Aging Effects of Artificial Weathering on Latex Sealants
    • ASTM C734
      • Standard Test Method for Low-Temperature Flexibility of Latex Sealants After Artificial Weathering
    • ASTM C793
      • Standard Test Method for Effects of Accelerated Weathering on Elastomeric Joint Sealants
    • ASTM D1148
      • Standard Test Method for Rubber Deterioration/Discoloration from Ultraviolet (UV) or UV/Visible Radiation and Heat Exposure of Light-Colored Surfaces
    • ASTM D1670
      • Standard Test Method for Failure End Point in Accelerated and Outdoor Weathering of Bituminous Materials
    • ASTM D2565
      • Standard Practice for Xenon Arc Exposure of Plastics Intended for Outdoor Applications
    • ASTM D3424
      • Standard Test Methods for Evaluating the Relative Lightfastness and Weatherability of Printed Matter
    • ASTM D3451
      • Standard Guide for Testing Coating Powders and Powder Coatings
    • ASTM D4101
      • Standard Specification for Polypropylene Injection and Extrusion Materials
    • ASTM D4303
      • Standard Test Methods for Lightfastness of Pigments Used in Artists' Paints
    • ASTM D4355
      • Standard Test Method for Deterioration of Geotextiles from Exposure to Ultraviolet Light and Water (Xenon-Arc Type Apparatus)
    • ASTM D4434
      • Standard Specification for Poly(Vinyl Chloride) Sheet Roofing
    • ASTM D4459
      • Standard Practice for Xenon-Arc Exposure of Plastics Intended for Indoor Applications
    • ASTM D4637
      • Standard Specification for EPDM Sheet Used in Single-Ply Roof Membrane
    • ASTM D4798
      • Standard Test Method for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Xenon-Arc Method)
    • ASTM D4811
      • Standard Specification for Nonvulcanized (Uncured) Rubber Sheet Used as Roof Flashing
    • ASTM D5010
      • Standard Guide for Testing Printing Inks and Related Materials
    • ASTM D5019
      • Standard Specification for Reinforced CSM (Chlorosulfonated Polyethylene) Sheet Used in Single-Ply Roof Membrane
    • ASTM D5071
      • Standard Practice for Exposure of Photodegradable Plastics in a Xenon Arc Apparatus
    • ASTM D5383
      • Standard Practice for Visual Determination of the Lightfastness of Art Materials by Art Technologists
    • ASTM D5398
      • Standard Practice for Visual Evaluation of the Lightfastness of Art Materials by the User
    • ASTM D5819
      • Standard Guide for Selecting Test Methods for Experimental Evaluation of Geosynthetic Durability
    • ASTM D6083
      • Standard Specification for Liquid Applied Acrylic Coating Used in Roofing
    • ASTM D6551
      • Standard Practice for Accelerated Weathering of Pressure-Sensitive Tapes by Xenon-Arc Exposure Apparatus
    • ASTM D6577
      • Standard Guide for Testing Industrial Protective Coatings
    • ASTM D6662
      • Standard Specification for Polyolefin-Based Plastic Lumber Decking Boards
    • ASTM D6695
      • Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings
    • ASTM D6878
      • Standard Specification for Thermoplastic Polyolefin Based Sheet Roofing
    • ASTM D750
      • Standard Test Method for Rubber Deterioration Using Artificial Weathering Apparatus
    • ASTM D7869
      • Standard Practice for Xenon Arc Exposure Test with Enhanced Light and Water Exposure for Transportation Coatings
    • ASTM D904
      • Standard Practice for Exposure of Adhesive Specimens to Artificial Light
    • ASTM F1164
      • Standard Test Method for Evaluation of Transparent Plastics Exposed to Accelerated Weathering Combined with Biaxial Stress
    • ASTM F1515
      • Standard Test Method for Measuring Light Stability of Resilient Flooring by Color Change
    • ASTM F2366
      • Standard Practice for Determining the Relative Lightfastness of Ink Jet Prints Exposed to Window Filtered Daylight Using a Xenon-Arc Light Apparatus
    • ASTM G151
      • Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
    • ASTM G155
      • Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
    • FLTM BO 116-01
      • Resistance to interior weathering
    • GB/T 10485
      • Road vehicles- Lighting and light-signaling devices- Environmental endurance
    • GB/T 14522
      • Accelerated weathering test method for plastics, coatings and rubber materials used for machinery industrial products
    • GB/T 16259
      • Test method for accelerated weathering of building materials
    • GB/T 16422
      • Plastics -- Methods of exposure to laboratory light sources -Part 2: Xenon-arc lamps
    • GB/T 16991
      • Textiles--Test for color fastness--Color fastness and ageing to artificial light at high temperatures: Xenon-arc
    • GB/T 1865
      • Paints and varnishes--Artificial weathering and exposure to artificial radiation—Exposure to filtered xenon- arc radiation
    • GB/T 18833
      • Retro-reflective sheeting for road traffic signs
    • GB/T 29061
      • Performance films for glass in buildings
    • GB/T 32088
      • Accelerated weathering test methods of automotive nonmetallic components and materials using a xenon-arc apparatus
    • GB/T 3511
      • Rubber, vulcanized- Test method for resistance to artificial weathering (xenon-arc)
    • GB/T 5137
      • Automotive safety glass test method
    • GB/T 6151
      • Textiles-Tests for color fastness-General principle of testing
    • GB/T 8427
      • Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test
    • GB/T 8430
      • Textiles - Tests for color fastness to artificial weathering - Xenon-arc fading lamp test
    • GM 9125P
      • Procedures for Laboratory Accelerated Exposure of Automotive Materials
    • GME 60292
      • Designation of Colour Fastness and Resistance to Artificial Light
    • GMW 14162
      • Colorfastness to Artificial Weathering
    • GMW 14170
      • Coating Requirements for Elastomeric Seals
    • GMW 14650
      • Performance Requirements for Exterior Plastic Parts
    • GMW 3414
      • Test Method for Artificial Weathering of Automotive Interior Trim Materials
    • Hyundai MS 210-05
      • Molded Plastic Parts - Interior Use
    • Hyundai MS 300-32
      • Standard Test Method - Woven, Knit
    • IEC 60068-2-5
      • Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering
    • IEC 61345
      • UV test for photovoltaic (PV) modules
    • ISO 105-B02
      • Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
    • ISO 105-B04
      • Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test
    • ISO 105-B06
      • Textiles - Tests for colour fastness - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test
    • ISO 105-B07
      • Textiles - Tests for Colour Fastness - Part B07: Colour Fastness to Light of Textiles Wetted with Artificial Perspiration
    • ISO 105-B10
      • Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation
    • ISO 11341
      • Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation
    • ISO 12040
      • Graphic technology - Prints and printing inks - Assessment of light fastness using filtered xenon arc light
    • ISO 16474-1
      • Paints and varnishes - Methods of exposure to laboratory light sources - Part 1: General guidance
    • ISO 16474-2
      • Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
    • ISO 18909
      • Photography - Processed photographic colour films and paper prints - Methods for measuring image stability
    • ISO 18930
      • Imaging materials - Pictorial colour reflection prints - Methods for evaluating image stability under outdoor conditions
    • ISO 18937
      • Imaging materials - Photographic reflection prints - Methods for measuring indoor light stability
    • ISO 29664
      • Plastics - Artificial Weathering Including Acidic Deposition
    • ISO 3917
      • Road vehicles - Safety glazing materials - Test methods for resistance to radiation, high temperature, humidity, fire and simulated weathering
    • ISO 4892-1
      • Plastics - Methods of exposure to laboratory light sources - Part 1: General guidance
    • ISO 4892-2
      • Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
    • JASO M346
      • Light-exposure test method by xenon-arc lamp for automotive interior part
    • JASO M351
      • Automotive parts - Accelerated weathering testing method by xenon-arc lamp for exterior parts
    • JIS B 7754
      • Light-exposure and light-and-water-exposure apparatus(xenon arc lamp type)
    • JIS D 0205
      • Test Method of Weatherability for Automotive Parts
    • MIL-STD 810F
      • Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.4: Solar radiation (Sunshine)
    • MIL-STD 810G
      • Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.5: Solar radiation (Sunshine)
    • Peugeot Citroen (PSA) D27 1389
      • Paint Coatings Rubbers and Plastics - Artificial Ageing by Weather-Ometer
    • Peugeot Citroen (PSA) D47 1431
      • Materials and Parts in the Passenger Compartment Appearance Behaviour to Artificial Light at High and Mean Temperatures
    • Renault D27 1911
      • Rubber and Plastic Paint Coatings - Artificial Ageing by Weather Ometer
    • Renault D47 1431
      • Materials and Passenger Compartment Parts Behaviour of the Appearance to Artificial Light at High and Medium Temperatures
    • SAE J1885
      • Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Water Cooled Xenon-Arc Apparatus
    • SAE J1960
      • Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Water-Cooled Xenon Arc Apparatus
    • SAE J2412
      • Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus
    • SAE J2413
      • Protocol To Verify Performance of New Xenon Arc Test Apparatus
    • SAE J2527
      • Performance Based Standard for Accelerated Exposure of Automotive Exterior Materials Using A Controlled Irradiance Xenon-Arc Apparatus
    • VDA 621-429
      • Tests for automotive coatings - Weathering test for colour fastness
    • VDA 621-430
      • Tests for automotive coatings - Test for resistance to cracking of 2 layer metallic clear coats
    • VDA 75202
      • Automotive interior materials - Colorfastness and ageing test against light at high temperatures: Xenon arc
    • VW PV 1303
      • Non-metallic materials - Lightfastness test for interior parts
    • VW PV 3929
      • Non-Metallic Materials - Weather Ageing in Dry, Hot Climate
    • VW PV 3930
      • Non-Metallic Materials - Weathering in Moist, Hot Climate

  • Descargas +


  • Aplicaciones +

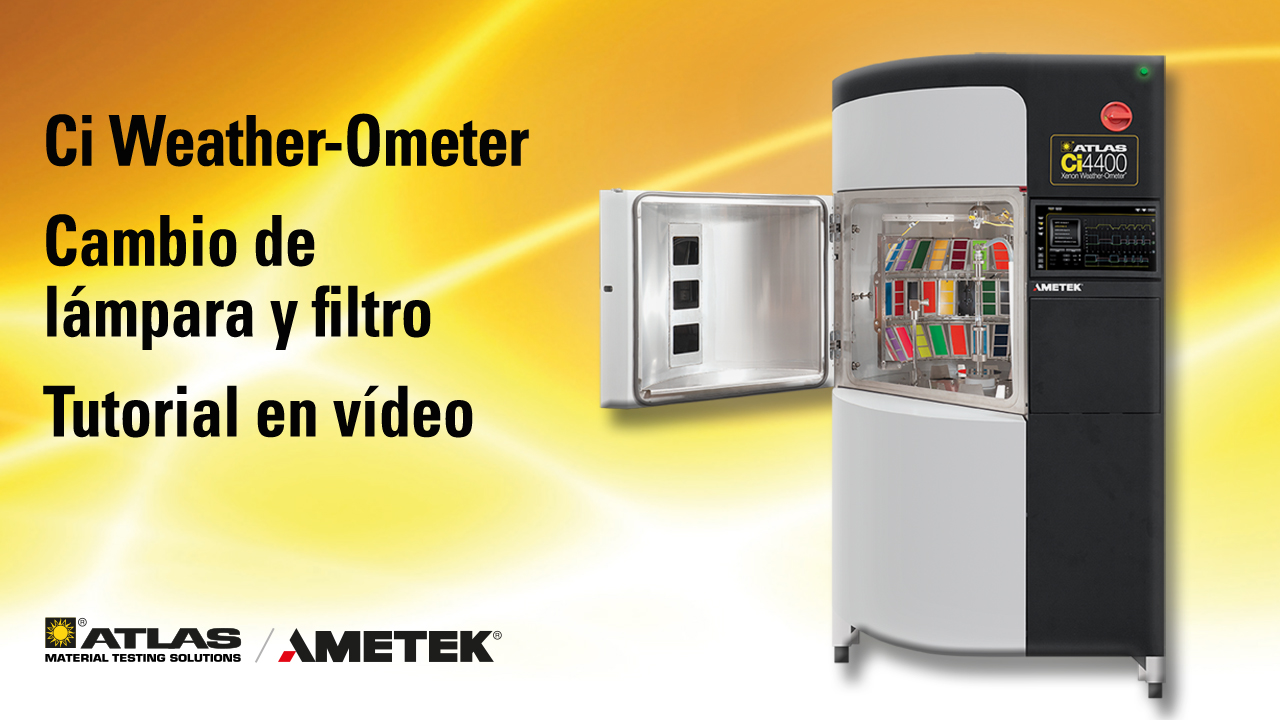

  • Videos +

    • FMCG

  • Seminarios en línea grabados +


    Tecnología y aplicación de arco de xenón - Seminario en línea Atlas – Inglés.


    Arco de xenón y UV Fluorescente - Comparación y Aplicaciones - Atlas Online Seminar - Inglés


    Configuraciones Para Pruebas de Intemperismo Comunes - Atlas Online Seminar - Inglés


    Diferentes Instrumentos de Intemperismo por Arco de Xenón: Aplicaciones y Limitaciones - Atlas Online Seminar - Inglés
